The new air circuit breaker range: hw+
Smart. Safe. Simple.
Hager's new ACB range delivers smarter, safer, and simpler energy management for your switchboards. Benefit from enhanced connectivity, extensive customisation options, and a choice of three versions with either Sentinel or Sentinel Energy trip units for optimized efficiency.
A new era in
circuit protection
Applications in buildings require a wide variety of protection capabilities. The hw+ ACB range covers all needs with only TWO trip units.
The LSI sentinel trip unit provides all the standard protection and tuning features for conventional applications.
The LSI sentinel Energy trip unit offers advanced protection and control functions as well as communication, alarm and measurement functions, making it the ideal choice for complex applications.

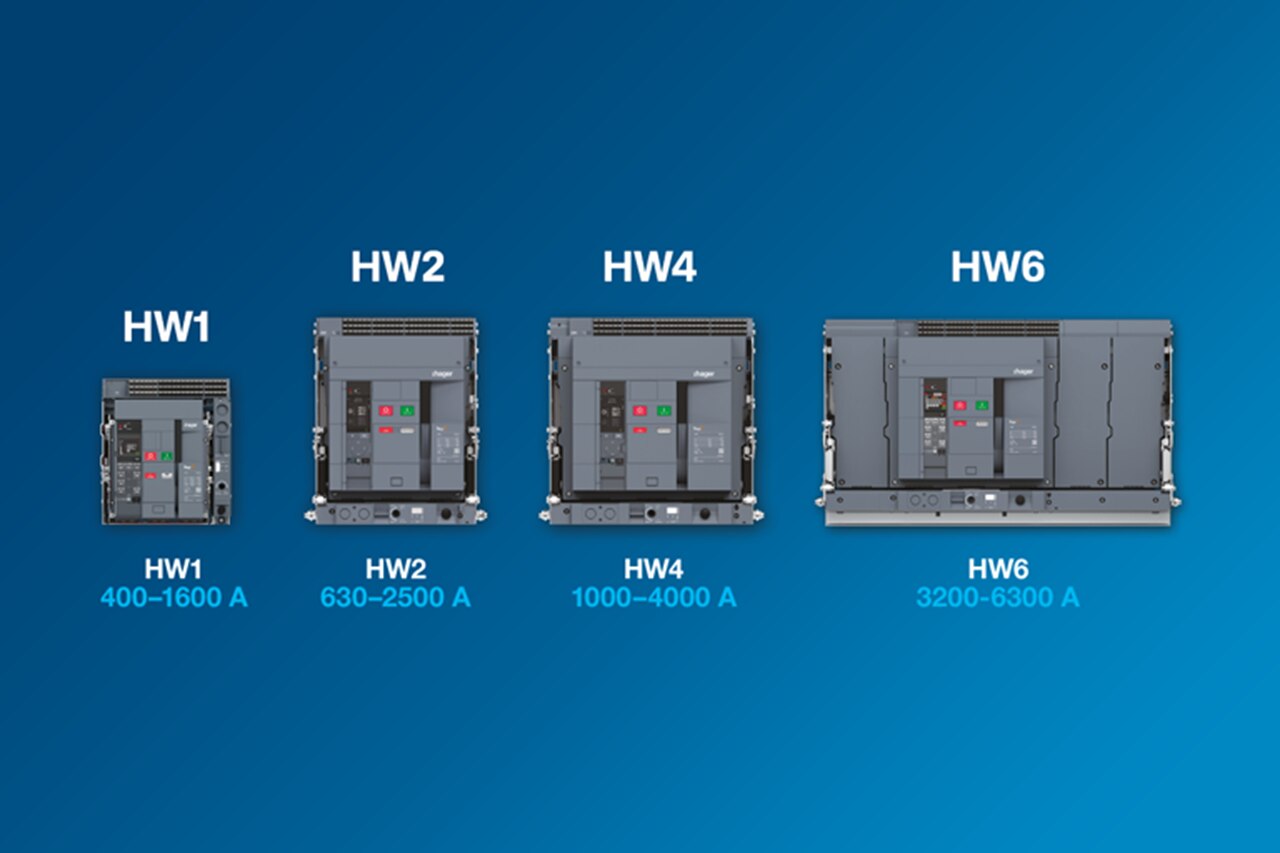

Focus on the new Hager range of Air Circuit Breakers: hw+
With hw+, you will benefit from maximum flexibility in the design phase.
Configurator, software and app
to complete the hw+ range
We support you at all stages of your project. To properly design, integrate, commission and monitor your hw+ ACBs, there are additional tools and resources to give you the answers you need.

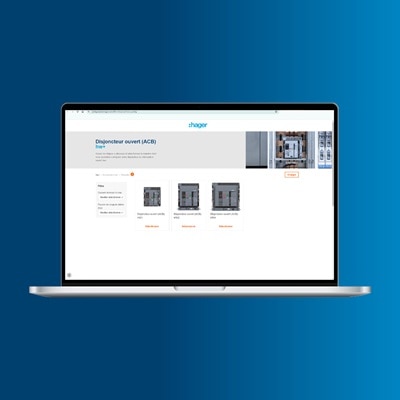

Web Configurator

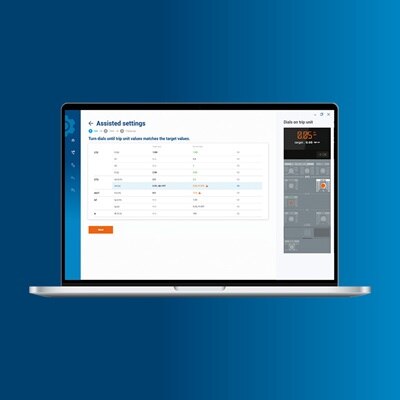

Hager Power setup

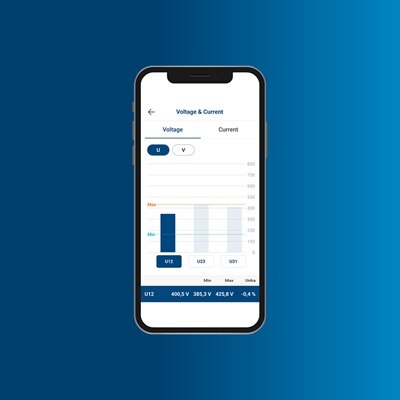

Hager Power Touch app
Combined with the sentinel Energy trip unit, the Hager Power touch app offers you a completely new user experience. Checking settings, operating status and maintenance information becomes even easier. In addition, you can monitor the measured values at any time.

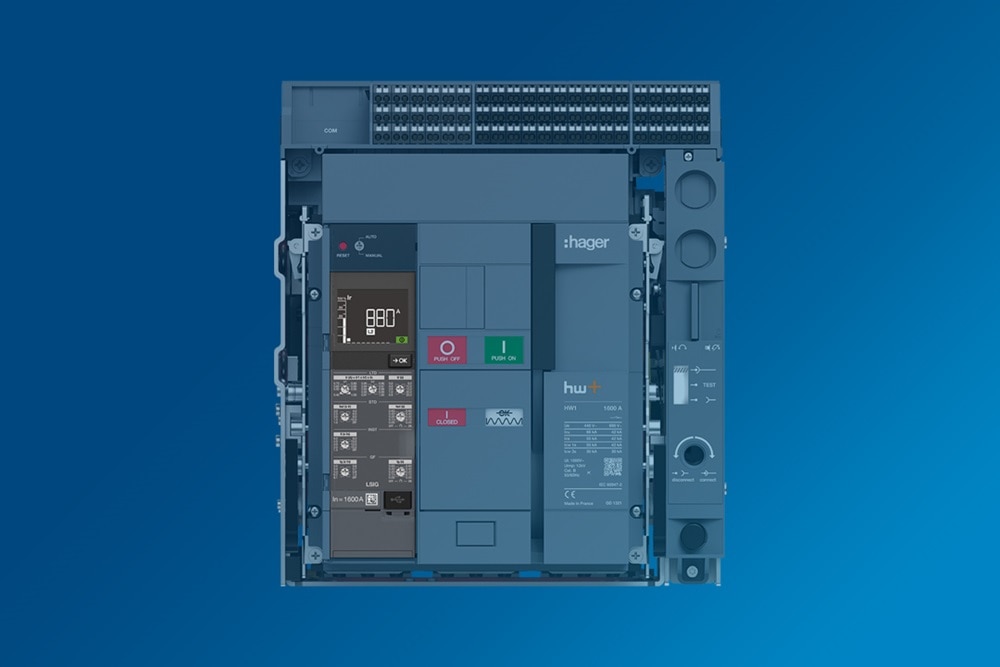

hw+ sentinel trip unit
The flexible one.
The sentinel trip unit manages to combine all the functions and tools you need in just one system thanks to its intelligent design. This gives you flexibility in reacting to changes in your distribution system at any time. The LCD-display and encoder wheels make its operation simple. All protection settings can be easily carried out directly on the trip unit.
hw+ sentinel Trip Unit: Features
LCD
The easy-to-read LCD display allows for easy adjustment and configuration of your shutter release.
Trip Unit Sentinel
OAC Module
Terminal Blocks
Push & Lock Coils
Safe and easy mounting. Coils are easily and safely mounted thanks to Push & lock system.
Safety Shutters
Lockable safety shutters protect the main contacts as soon as the circuit breaker is removed from the chassis, using withdrawable technology.
QR Code
Access information and technical documents by scanning the QR code on the device.
Release & lock catch
The position latch is not only used to release the chassis position during racking operation but also used to lock it, with up to 3 padlocks.

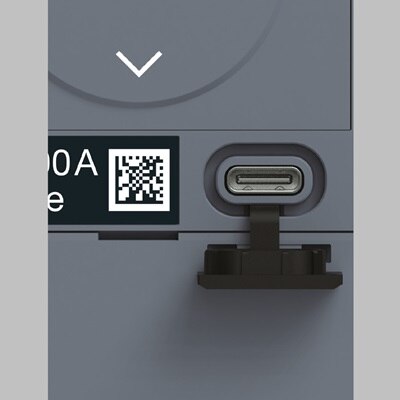

USB-C Connection
Allows settings to be sent from the Hager Power setup software.

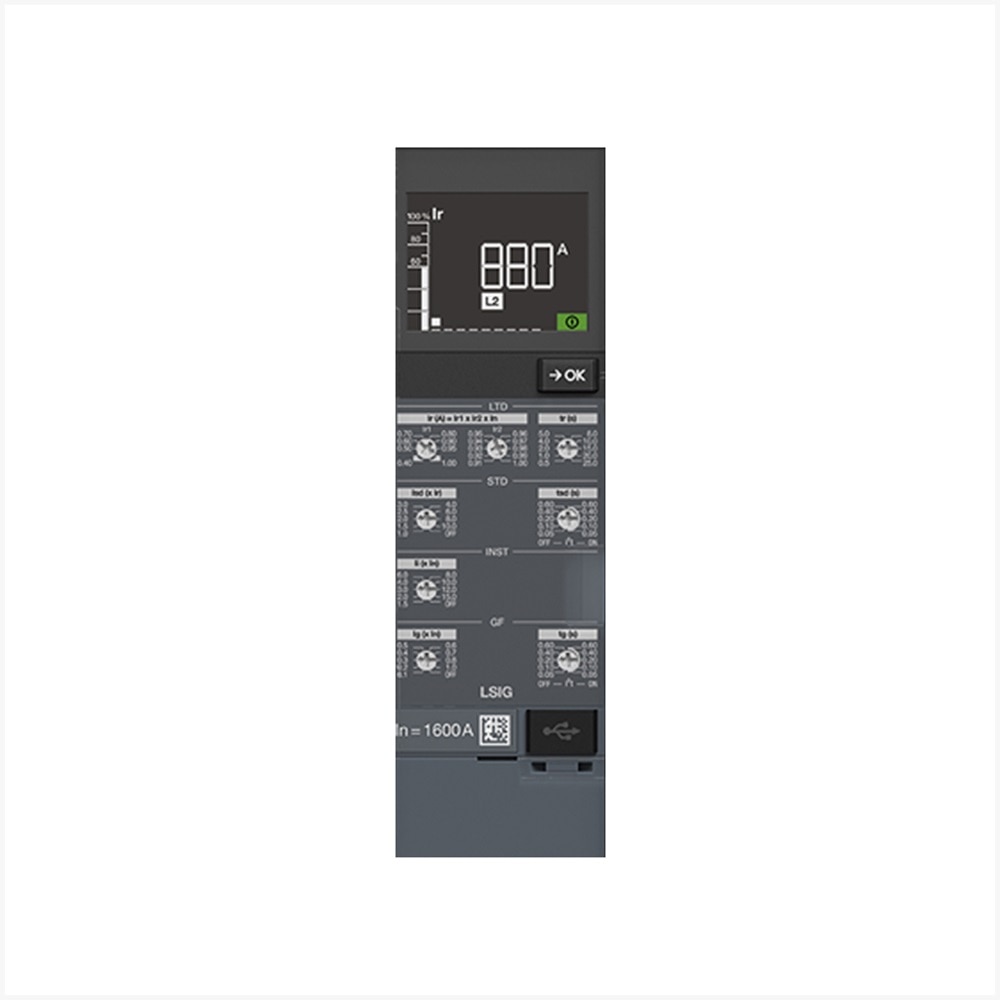

LSI Sentinel Trip Unit
How to set it up?
The parameters of the LSI sentinel trigger can be adjusted on the front panel using encoder wheels. In addition, the LCD display can be activated via the USB-C interface with a power source, battery or laptop, to view the settings made.
Turning on the screen
Power the display with a power bank
or laptop.

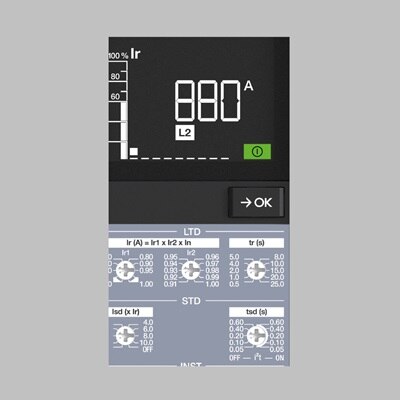

Encoder Wheel
Use the encoder wheel to change the setting values. Each parameter is displayed in real time, in amperes or seconds.
Visualisation of the current rate

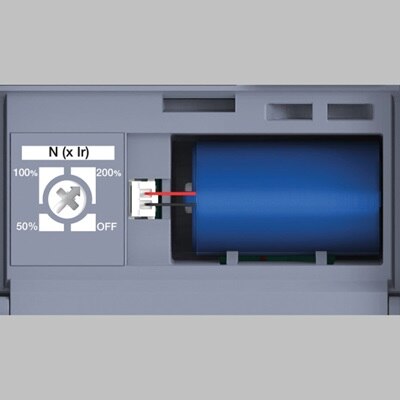

Neutral Protection

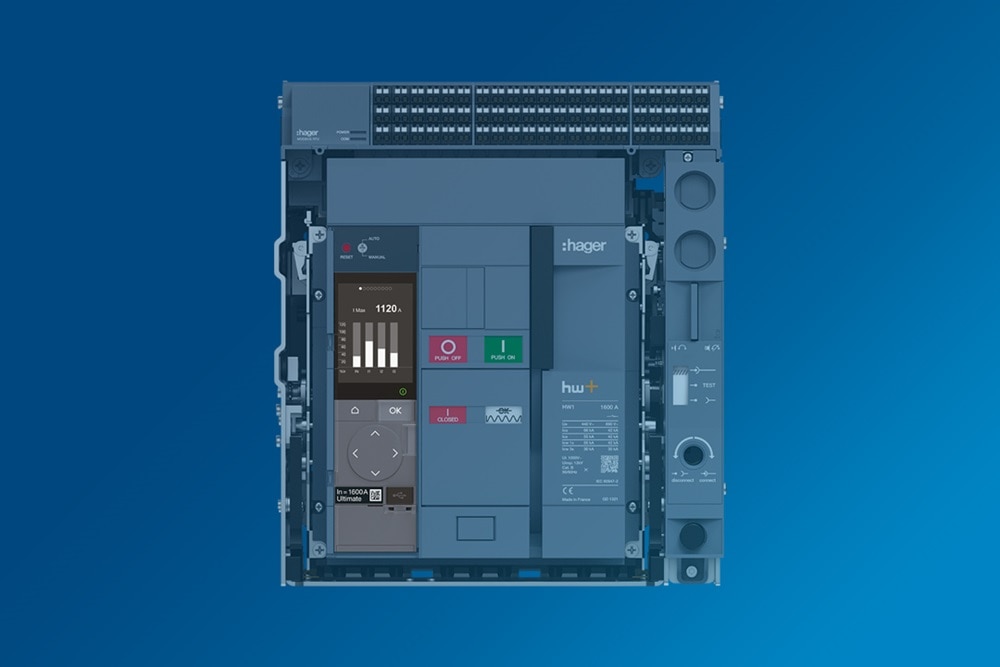

hw+ sentinel Energy
The smart one.
The sentinel Energy trip unit elevates your user experience. With a powerful coloured TFT display, operations are enhanced. Alongside all the sentinel trip unit features, it adds communication, advanced protections, alarms, metering, and control functions for high demands
hw+ sentinel Energy: Features
LCD
The easy-to-read LCD display allows for easy adjustment and configuration of your shutter release.
Bluetooth Connection
Monitor your ACB with the Hager Power Touch app using the Energy LSI sentinel trigger by on Bluetooth.
Communication Module
Optional communication modules (COMs) enable communication via Modbus-RTU or Modbus-TCP.
Remote Display
The optional remote display provides access to the ACB display when mounted behind a door or solid panel.
Module OAC
Remotely inform of customisable predefined events (49 available) with the optional OAC module, which drives up to 5 output contacts.
Connecting coils
The transmit and close coils are ready to receive on/off commands from the Hager Power touch app, Hager Power setup software, or Modbus communication.
USB-C connection
Allows the trigger to operate without mains power, connect to a computer, use Hager Power setup software for testing and commissioning.

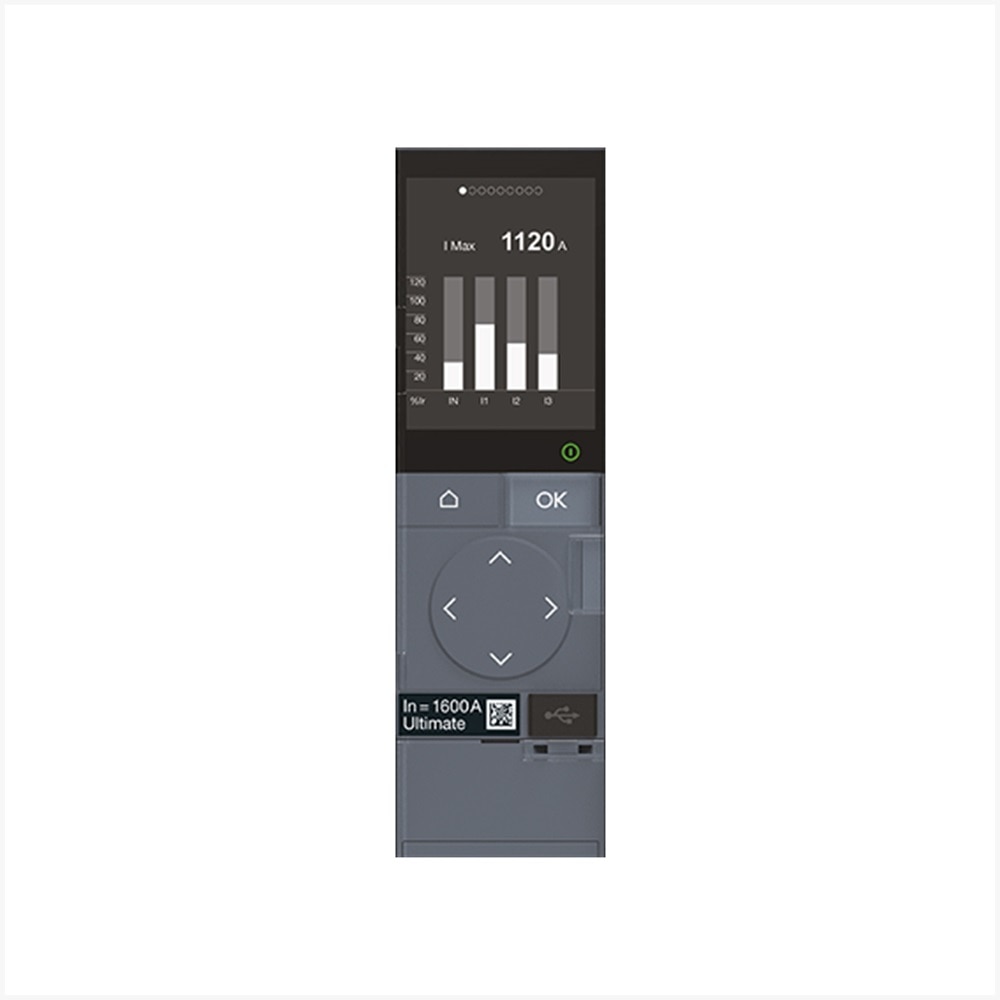

LSI sentinel Energy
Trip Unit
With the clear graphic TFT display, you will have all the important information in view.

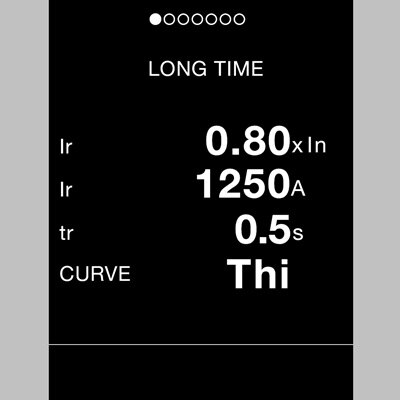

Automatic parameter scrolling screen
You can choose to scroll through your favourite settings or metering screens by activating Live mode. Up to 36 predefined screens are available.

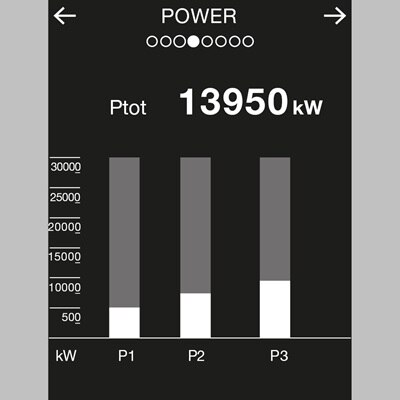

Viewing measurements
You can retrieve all parameters at any time by pressing the OK button. Most measured values can be displayed both numerically and graphically.

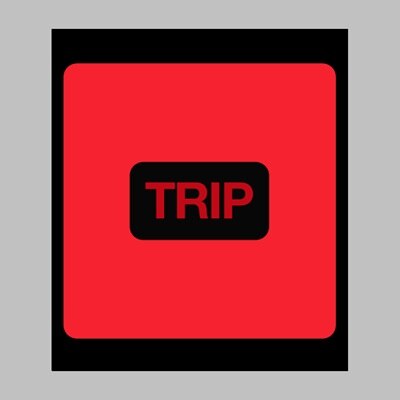

Trip and alarm notifications
A colour code defines the level of criticality of the events: orange for an alarm, red for tripping operation.

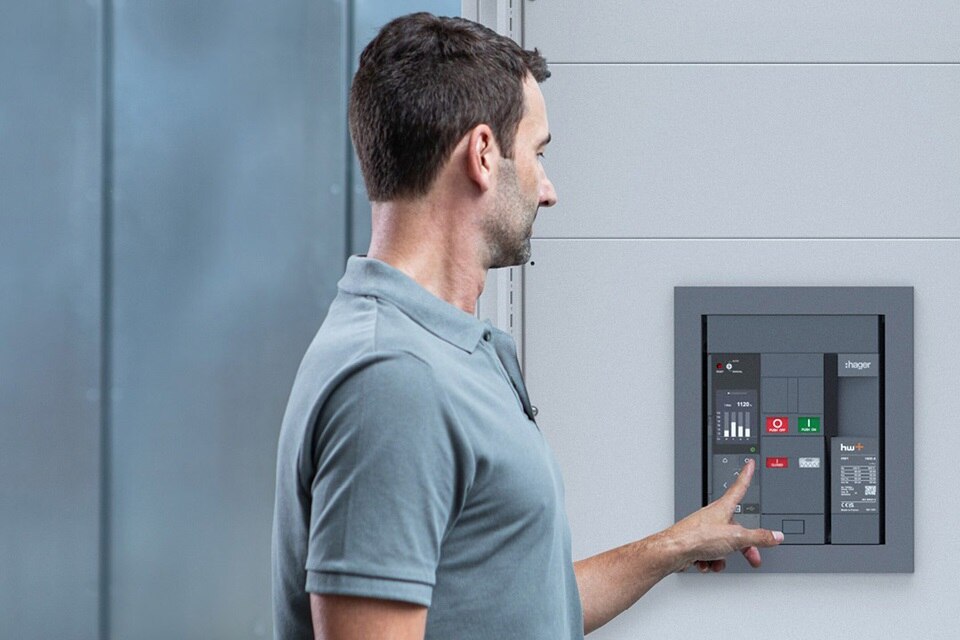

Protection integrated
into quadro evo
All ACBs in the hw+ range can be easily integrated into our quadro evo switchboard solution. This way, the centrepiece of your power supply is exactly where it needs to be, at the heart of your electrical panel.
Maximise the full potential
with a range of accessories
Unlock the full potential of hw+
Auxiliary Contacts (AX)
Auxiliary contacts are used to remotely signal the status of the ACB (ON or OFF).
• 4 auxiliary contacts (AX) are fitted as standard on the HW1 and HW2 ACBs,
• 6 auxiliary contacts (AX) are fitted as standard on the HW4 ACBs,
• ready to be connected.
Spring Loading Motor (MO)
The spring loading motor is used to load the ACB closing mechanism. It is available for all common supply voltages.
Coils
The coils allow the ACB to be opened or closed remotely. A total of 3 coils can be mounted in the ACB:
• 1 emission coil (SH)
• 1 low voltage (UV) coil
• 1 closing coil (DC)
• Communicating coil option for sentinel Energy LSI
Push Button Lock
The push buttons can be locked to prevent unwanted pressing. This also allows the ACB to mechanically force the OFF position.
Key lock in the OFF position (OLK)
To lock the position of the OFF button, simply mount a Ronis key lock.
Mechanical Interlocking (MI)
Locking 2 or 3 ACBs together for security applications. Compatible with all versions of circuit breakers (3P and 4P, fixed and plug-in).
